Master DW

Top characteristics

Puxador prático para um fácil transporte da bomba.
Drenagem de líquidos com captação de até 4 mm.
Sistema ANTI CLOG: é uma solução formidável que permite que as bombas Master DW realizem uma “autolimpeza” sempre que algum objeto obstruir o rotor, impedindo o funcionamento normal.

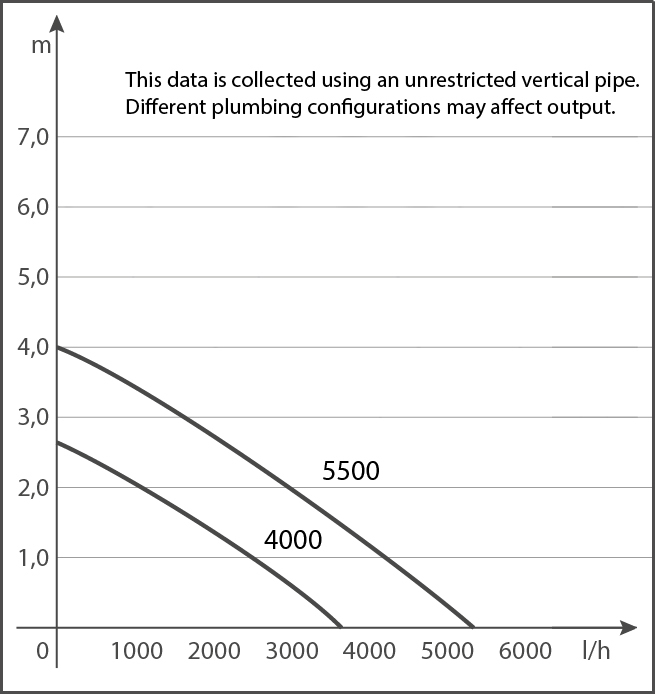

CURVAS DE DESEMPENHO
PRODUCT DIMENSIONS

EXPLODED VIEW

Master DW

As bombas MASTER DW foram projetadas para a utilização em água suja ou lagos de média e grande dimensão. São ideais para a criação de cascatas ou para ser equipadas com filtros externos. Diferente de bombas de drenagem com design semelhante, as bombas MASTER DW podem funcionar continuamente.

Key Features

MASTER DW 4000 - 5500 - 8000	MASTER DW 10500e
Grade dupla de filtração	Grade dupla de filtração
Adaptador em saída para ligar tubos de jardim padrão	Adaptador em saída para ligar tubos de jardim padrão
Conchas, voluta e rotor termoplástico resistente à corrosão	Conchas, voluta e rotor termoplástico resistente à corrosão
Utilização sugerida com filtros externos GREEN RESET	Desligamento automático em caso de funcionamento a seco sem necessidade de um sensor flutuante externo
	Motor síncrono controlado eletronicamente com rotor com partida unidirecional para garantir alto desempenho
	Proteção térmica em caso de sobreaquecimento

ISTRUZ

MASTER DW

MASTER DW 4000

99,94 €

Adicionar à Lista de Desejos

Q-Max	3700 l/h
H-Max	h 275 cm
Voltage / Hertz	230-240v / 50hz
Watt	50
UMSM01F	cable 10 m - schuko - 3p

MASTER DW 5500

149,94 €

Adicionar à Lista de Desejos

Q-Max	5400 l/h
H-Max	h 400 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR01F	cable 10 m - schuko - 3p

MASTER DW 8000

222,17 €

Adicionar à Lista de Desejos

Q-Max	8000 l/h
H-Max	h 600 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR02F	cable 10 m - schuko - 3p

MASTER DW 10500e

322,17 €

Adicionar à Lista de Desejos

Q-Max	10500 l/h
H-Max	h 950 cm
Voltage / Hertz	230-240v / 50hz
Watt	250
UMSR03F	cable 10 m - schuko - 3p

Spare parts Ver tudo

SGR0036/OL	MASTER DW 4000	ROTOR	11,80 €	Qtd
SKT0070/OL	MASTER DW 4000	PRECHAMBER	6,10 €	Qtd
SKT0071/OL	MASTER DW 4000	CERAMIC SHAFT +BUSHINGS	11,60 €	Qtd
SPL0035/OL	MASTER DW 4000	BOTTOM GRID	5,30 €	Qtd
SVE0008/OL	MASTER DW 4000	O-RING 3 pcs	4,00 €	Qtd
STR0003/OL	MASTER DW	HOSE CONNECTOR 1" gas	11,60 €	Qtd
90956/OL	MASTER DW 5500	ROTOR	32,50 €	Qtd
90961/OL	MASTER DW 5500	PRACHAMBER	6,60 €	Qtd
90960/OL	MASTER DW 5500/8000	CERAMIC SHAFT +BUSHINGS	15,60 €	Qtd
90963/OL	MASTER DW 5500/8000	Stainless steel screws 4 pcs - 4 units	2,60 €	Qtd
90964/OL	MASTER D 5500/8000	O-RING PRECHAMBER 2 pcs - 2 units	4,30 €	Qtd
90965/OL	MASTER D 5500/8000	BOTTOM GRID	15,50 €	Qtd
90957/OL	MASTER DW 8000	ROTOR	36,30 €	Qtd
90962/OL	MASTER DW 8000	PRECHAMBER	6,30 €	Qtd

FAQ Ver tudo

PROBLEM	POSSIBLE CAUSE	SOLUTION
The Pump does not start, or pump water	Pump is not connected to the power supply Water level too low The impellor is stuck The thermal overload protection is activated The motor is damaged	Check that the Pump is connected to the mains power supply Turn Pump off at the mains power supply and inspect and clean obstruction Wait for the motor to cool and it will automatically start operation Contact customer service
The Pump does not sup- ply water when the motor is running	Priming vent blocked The base is obstructed/blocked Air lock in the hose/tube and/or Pump (air bubbles) Discharge hose/tube (not included) is kinked or damaged	Clean the Priming vent Turn Pump off at the mains power supply and clean the base of debris. Perform several start-ups in order to remove all the air or re prime Pump Un-kink the discharge hose/tube. Or replace hose/tube. Turn Pump off at the mains power supply and check the discharge outlet and filter for any foreign bodies.
The Pump flow rate is reduced Check the discharge point height.	The base is partially obstructed/blocked The hose/tube is obstructed. Incorrect assembly leads to air and water leakage in the discharge lines.	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Remove the obstructions Reduce the height of the discharge point. Note: the lower the discharge point, the faster the flow rate Ensure the discharge lines are the correct length and all assembly instructions are adhered to.
Pump will not turn off, even though the water level is low
Hose/tube does not stay on the adaptor when water is travelling through	The hose/tube is slightly wider than the dimen- sion of the adaptor	Use a hose clamp to secure the drain hose to the fitting. Fit correct size pipe and use a hose clamp
The Pump operates intermittently	The base is obstructed/blocked Incorrect voltage is being used The fluid contains particles thicker than 20mm The motor is faulty or damaged	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Ensure the Pump is connected into 230-240V power supply Note: This submersible Pump must be used with a residual current device with a rated residual current of 30mA or less. (This device is not supplied and can generally be purchased from your local Hardware store) Residual Current Devices are available for purchase online at www.extrabattery.com.au Ensure the Pump is not being used with particles thicker than 20mm. Contact customer service

PRODUCT DIMENSIONS

EXPLODED VIEW
