Master DW

Top characteristics

Ручка для легкого доступа.
Дренаж до 4 мм.
Система "Антизасор": отличное решение, позволяющее насосам Master DW "самоочищаться" в случае блокировки ротора посторонними предметами, препятствующим его нормальной работе.

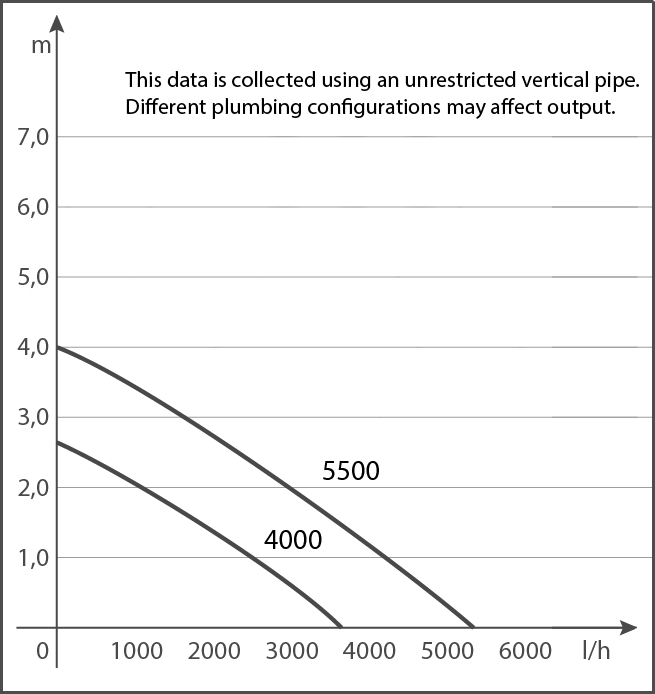

Технические диаграммы
PRODUCT DIMENSIONS

EXPLODED VIEW

Master DW

Насосы серии Master DW разработаны для средних и больших прудов с сильно загрязненной водой. Для создания водопадов или использования совместно с внешними фильтрами.

Key Features

две крышки фильтрации

Выпускное отверстие подходит для стандартных садовых шлангов

Крышка, адвптеры и ротор изготовлены из термопластика. Не ржавеет и не подвержен коррозии

ИДЕАЛЬНО ПОДХОДИТ ДЛЯ Green Reset

ISTRUZ

MASTER DW

MASTER DW 4000

99,94 €

Добавить в список желаний

Q-Max	3700 l/h
H-Max	h 275 cm
Voltage / Hertz	230-240v / 50hz
Watt	50
UMSM01F	cable 10 m - schuko - 3p

MASTER DW 5500

149,94 €

Добавить в список желаний

Q-Max	5400 l/h
H-Max	h 400 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR01F	cable 10 m - schuko - 3p

Spare parts Посмотреть все

SGR0036/OL	MASTER DW 4000	ROTOR	11,80 €	Кол-во
SKT0070/OL	MASTER DW 4000	PRECHAMBER	6,10 €	Кол-во
SKT0071/OL	MASTER DW 4000	CERAMIC SHAFT +BUSHINGS	11,60 €	Кол-во
SPL0035/OL	MASTER DW 4000	BOTTOM GRID	5,30 €	Кол-во
SVE0008/OL	MASTER DW 4000	O-RING 3 pcs	4,00 €	Кол-во
STR0003/OL	MASTER DW	HOSE CONNECTOR 1" gas	11,60 €	Кол-во
90956/OL	MASTER DW 5500	ROTOR	32,50 €	Кол-во
90961/OL	MASTER DW 5500	PRACHAMBER	6,60 €	Кол-во
90960/OL	MASTER DW 5500/8000	CERAMIC SHAFT +BUSHINGS	15,60 €	Кол-во
90963/OL	MASTER DW 5500/8000	Stainless steel screws 4 pcs - 4 units	2,60 €	Кол-во
90964/OL	MASTER D 5500/8000	O-RING PRECHAMBER 2 pcs - 2 units	4,30 €	Кол-во
90965/OL	MASTER D 5500/8000	BOTTOM GRID	15,50 €	Кол-во
90957/OL	MASTER DW 8000	ROTOR	36,30 €	Кол-во
90962/OL	MASTER DW 8000	PRECHAMBER	6,30 €	Кол-во

FAQ Посмотреть все

PROBLEM	POSSIBLE CAUSE	SOLUTION
The Pump does not start, or pump water	Pump is not connected to the power supply Water level too low The impellor is stuck The thermal overload protection is activated The motor is damaged	Check that the Pump is connected to the mains power supply Turn Pump off at the mains power supply and inspect and clean obstruction Wait for the motor to cool and it will automatically start operation Contact customer service
The Pump does not sup- ply water when the motor is running	Priming vent blocked The base is obstructed/blocked Air lock in the hose/tube and/or Pump (air bubbles) Discharge hose/tube (not included) is kinked or damaged	Clean the Priming vent Turn Pump off at the mains power supply and clean the base of debris. Perform several start-ups in order to remove all the air or re prime Pump Un-kink the discharge hose/tube. Or replace hose/tube. Turn Pump off at the mains power supply and check the discharge outlet and filter for any foreign bodies.
The Pump flow rate is reduced Check the discharge point height.	The base is partially obstructed/blocked The hose/tube is obstructed. Incorrect assembly leads to air and water leakage in the discharge lines.	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Remove the obstructions Reduce the height of the discharge point. Note: the lower the discharge point, the faster the flow rate Ensure the discharge lines are the correct length and all assembly instructions are adhered to.
Pump will not turn off, even though the water level is low
Hose/tube does not stay on the adaptor when water is travelling through	The hose/tube is slightly wider than the dimen- sion of the adaptor	Use a hose clamp to secure the drain hose to the fitting. Fit correct size pipe and use a hose clamp
The Pump operates intermittently	The base is obstructed/blocked Incorrect voltage is being used The fluid contains particles thicker than 20mm The motor is faulty or damaged	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Ensure the Pump is connected into 230-240V power supply Note: This submersible Pump must be used with a residual current device with a rated residual current of 30mA or less. (This device is not supplied and can generally be purchased from your local Hardware store) Residual Current Devices are available for purchase online at www.extrabattery.com.au Ensure the Pump is not being used with particles thicker than 20mm. Contact customer service
