Master DW

Top characteristics

Praktische handgreep voor eenvoudige verplaatsing van de pomp.
Afvoer van vloeistoffen met diepgang tot 4 mm.
ANTI CLOG-systeem: dit is een formidabele oplossing waarmee Master DW-pompen zichzelf kunnen "reinigen" als bepaalde objecten de rotor hinderen en een normale werking verhinderen.

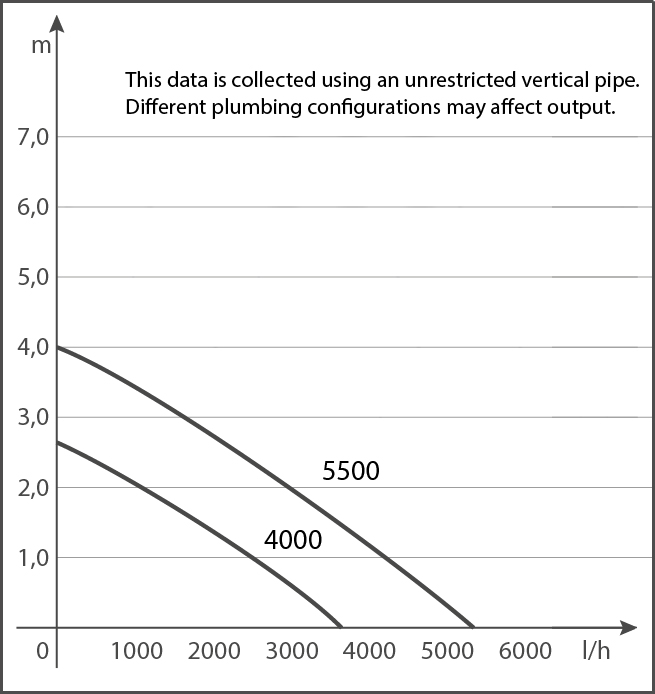

PRESTATIECURVE
PRODUCT DIMENSIONS

EXPLODED VIEW

Master DW

MASTER DW-pompen zijn ontworpen voor gebruik in vuil water of voor middelgrote tot grote vijvers. Ze zijn ideaal voor het maken van watervallen of om te combineren met externe filters. In tegenstelling tot drainagepompen met een vergelijkbaar ontwerp kunnen MASTER DW-pompen continu werken.

Key Features

Dubbel filterrooster

Uitlaatadapter voor het aansluiten van standaard tuinslangen

Behuizing, voluut en thermoplastische rotor bestand tegen corrosie

Voorgesteld gebruik met externe GREEN RESET-filters

ISTRUZ

MASTER DW

MASTER DW 4000

€ 99,94

Voeg toe aan verlanglijst

Q-Max	3700 l/h
H-Max	h 275 cm
Voltage / Hertz	230-240v / 50hz
Watt	50
UMSM01F	cable 10 m - schuko - 3p

MASTER DW 5500

€ 149,94

Voeg toe aan verlanglijst

Q-Max	5400 l/h
H-Max	h 400 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR01F	cable 10 m - schuko - 3p

Spare parts Bekijk alles

SGR0036/OL	MASTER DW 4000	ROTOR	€ 11,80	Aantal
SKT0070/OL	MASTER DW 4000	PRECHAMBER	€ 6,10	Aantal
SKT0071/OL	MASTER DW 4000	CERAMIC SHAFT +BUSHINGS	€ 11,60	Aantal
SPL0035/OL	MASTER DW 4000	BOTTOM GRID	€ 5,30	Aantal
SVE0008/OL	MASTER DW 4000	O-RING 3 pcs	€ 4,00	Aantal
STR0003/OL	MASTER DW	HOSE CONNECTOR 1" gas	€ 11,60	Aantal
90956/OL	MASTER DW 5500	ROTOR	€ 32,50	Aantal
90961/OL	MASTER DW 5500	PRACHAMBER	€ 6,60	Aantal
90960/OL	MASTER DW 5500/8000	CERAMIC SHAFT +BUSHINGS	€ 15,60	Aantal
90963/OL	MASTER DW 5500/8000	Stainless steel screws 4 pcs - 4 units	€ 2,60	Aantal
90964/OL	MASTER D 5500/8000	O-RING PRECHAMBER 2 pcs - 2 units	€ 4,30	Aantal
90965/OL	MASTER D 5500/8000	BOTTOM GRID	€ 15,50	Aantal
90957/OL	MASTER DW 8000	ROTOR	€ 36,30	Aantal
90962/OL	MASTER DW 8000	PRECHAMBER	€ 6,30	Aantal

FAQ Bekijk alles

PROBLEM	POSSIBLE CAUSE	SOLUTION
The Pump does not start, or pump water	Pump is not connected to the power supply Water level too low The impellor is stuck The thermal overload protection is activated The motor is damaged	Check that the Pump is connected to the mains power supply Turn Pump off at the mains power supply and inspect and clean obstruction Wait for the motor to cool and it will automatically start operation Contact customer service
The Pump does not sup- ply water when the motor is running	Priming vent blocked The base is obstructed/blocked Air lock in the hose/tube and/or Pump (air bubbles) Discharge hose/tube (not included) is kinked or damaged	Clean the Priming vent Turn Pump off at the mains power supply and clean the base of debris. Perform several start-ups in order to remove all the air or re prime Pump Un-kink the discharge hose/tube. Or replace hose/tube. Turn Pump off at the mains power supply and check the discharge outlet and filter for any foreign bodies.
The Pump flow rate is reduced Check the discharge point height.	The base is partially obstructed/blocked The hose/tube is obstructed. Incorrect assembly leads to air and water leakage in the discharge lines.	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Remove the obstructions Reduce the height of the discharge point. Note: the lower the discharge point, the faster the flow rate Ensure the discharge lines are the correct length and all assembly instructions are adhered to.
Pump will not turn off, even though the water level is low
Hose/tube does not stay on the adaptor when water is travelling through	The hose/tube is slightly wider than the dimen- sion of the adaptor	Use a hose clamp to secure the drain hose to the fitting. Fit correct size pipe and use a hose clamp
The Pump operates intermittently	The base is obstructed/blocked Incorrect voltage is being used The fluid contains particles thicker than 20mm The motor is faulty or damaged	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Ensure the Pump is connected into 230-240V power supply Note: This submersible Pump must be used with a residual current device with a rated residual current of 30mA or less. (This device is not supplied and can generally be purchased from your local Hardware store) Residual Current Devices are available for purchase online at www.extrabattery.com.au Ensure the Pump is not being used with particles thicker than 20mm. Contact customer service

PRODUCT DIMENSIONS

EXPLODED VIEW
