Master DW

Top characteristics

Pratica maniglia per un facile trasporto della pompa.
Drenaggio di liquidi con pescaggio fino a 4 mm.
Sistema ANTI CLOG: è una formidabile soluzione che consente alle pompe Master DW di "autopulirsi" qualora alcuni oggetti ostruissero il rotore impedendone il normale funzionamento.

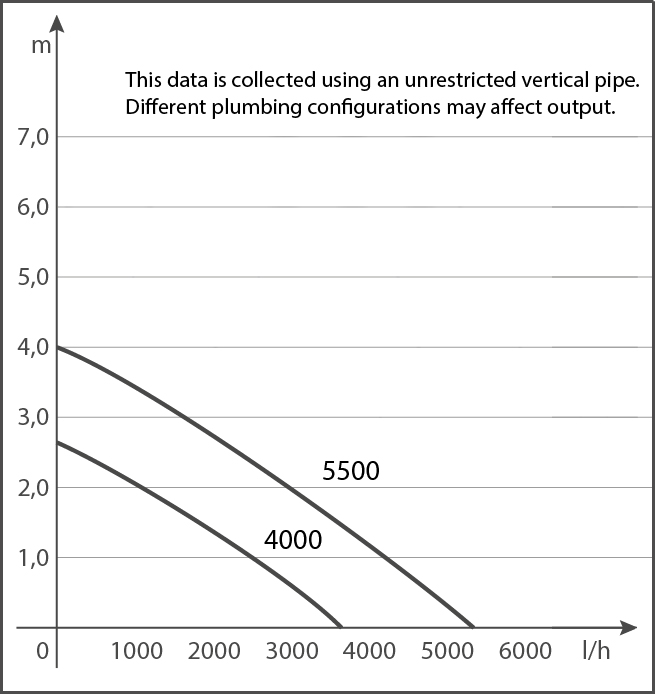

PERFORMANCE CHART
PRODUCT DIMENSIONS

EXPLODED VIEW

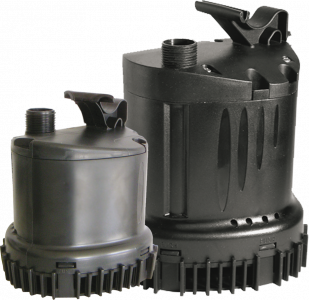

Master DW

Le pompe MASTER DW sono state progettate per l'utilizzo in acque sporche o per laghetti di medio - grandi dimensioni. Sono ideali per la creazione di cascate o per essere abbinate a filtri esterni. A differenza di pompe da drenaggio con un design simile, le pompe MASTER DW possono funzionare continuamente.

Key Features

MASTER DW 4000 - 5500 - 8000	MASTER DW 10500e
Doppia griglia di filtrazione.	Doppia griglia di filtrazione.
Adattatore in uscita per collegare tubi da giardino standard.	Adattatore in uscita per collegare tubi da giardino standard.
Gusci, voluta e rotore termoplastico resitente alla corrosione.	Gusci, voluta e rotore termoplastico resitente alla corrosione.
Uso suggerito con filtri esterni GREEN RESET	Spegnimento automatico in caso di funzionamento a secco senza la necessita' di un sensore flottante esterno.
	Motore sincrono controllato elettronicamente con rotore con partenza unidirezionale per garantire prestazioni elevate.
	Protezione termica in caso di surriscaldamento.

ISTRUZ

MASTER DW

MASTER DW 4000

99,94 €

Aggiungi alla lista desideri

Q-Max	3700 l/h
H-Max	h 275 cm
Voltage / Hertz	230-240v / 50hz
Watt	50
UMSM01F	cable 10 m - schuko - 3p

MASTER DW 5500

149,94 €

Aggiungi alla lista desideri

Q-Max	5400 l/h
H-Max	h 400 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR01F	cable 10 m - schuko - 3p

MASTER DW 8000

222,17 €

Aggiungi alla lista desideri

Q-Max	8000 l/h
H-Max	h 600 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR02F	cable 10 m - schuko - 3p

MASTER DW 10500e

322,17 €

Aggiungi alla lista desideri

Q-Max	10500 l/h
H-Max	h 950 cm
Voltage / Hertz	230-240v / 50hz
Watt	250
UMSR03F	cable 10 m - schuko - 3p

Spare parts Mostra tutti

SGR0036/OL	MASTER DW 4000	ROTOR	11,80 €	Qtà
SKT0070/OL	MASTER DW 4000	PRECHAMBER	6,10 €	Qtà
SKT0071/OL	MASTER DW 4000	CERAMIC SHAFT +BUSHINGS	11,60 €	Qtà
SPL0035/OL	MASTER DW 4000	BOTTOM GRID	5,30 €	Qtà
SVE0008/OL	MASTER DW 4000	O-RING 3 pcs	4,00 €	Qtà
STR0003/OL	MASTER DW	HOSE CONNECTOR 1" gas	11,60 €	Qtà
90956/OL	MASTER DW 5500	ROTOR	32,50 €	Qtà
90961/OL	MASTER DW 5500	PRACHAMBER	6,60 €	Qtà
90960/OL	MASTER DW 5500/8000	CERAMIC SHAFT +BUSHINGS	15,60 €	Qtà
90963/OL	MASTER DW 5500/8000	Stainless steel screws 4 pcs - 4 units	2,60 €	Qtà
90964/OL	MASTER D 5500/8000	O-RING PRECHAMBER 2 pcs - 2 units	4,30 €	Qtà
90965/OL	MASTER D 5500/8000	BOTTOM GRID	15,50 €	Qtà
90957/OL	MASTER DW 8000	ROTOR	36,30 €	Qtà
90962/OL	MASTER DW 8000	PRECHAMBER	6,30 €	Qtà

FAQ Mostra tutti

PROBLEM	POSSIBLE CAUSE	SOLUTION
The Pump does not start, or pump water	Pump is not connected to the power supply Water level too low The impellor is stuck The thermal overload protection is activated The motor is damaged	Check that the Pump is connected to the mains power supply Turn Pump off at the mains power supply and inspect and clean obstruction Wait for the motor to cool and it will automatically start operation Contact customer service
The Pump does not sup- ply water when the motor is running	Priming vent blocked The base is obstructed/blocked Air lock in the hose/tube and/or Pump (air bubbles) Discharge hose/tube (not included) is kinked or damaged	Clean the Priming vent Turn Pump off at the mains power supply and clean the base of debris. Perform several start-ups in order to remove all the air or re prime Pump Un-kink the discharge hose/tube. Or replace hose/tube. Turn Pump off at the mains power supply and check the discharge outlet and filter for any foreign bodies.
The Pump flow rate is reduced Check the discharge point height.	The base is partially obstructed/blocked The hose/tube is obstructed. Incorrect assembly leads to air and water leakage in the discharge lines.	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Remove the obstructions Reduce the height of the discharge point. Note: the lower the discharge point, the faster the flow rate Ensure the discharge lines are the correct length and all assembly instructions are adhered to.
Pump will not turn off, even though the water level is low
Hose/tube does not stay on the adaptor when water is travelling through	The hose/tube is slightly wider than the dimen- sion of the adaptor	Use a hose clamp to secure the drain hose to the fitting. Fit correct size pipe and use a hose clamp
The Pump operates intermittently	The base is obstructed/blocked Incorrect voltage is being used The fluid contains particles thicker than 20mm The motor is faulty or damaged	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Ensure the Pump is connected into 230-240V power supply Note: This submersible Pump must be used with a residual current device with a rated residual current of 30mA or less. (This device is not supplied and can generally be purchased from your local Hardware store) Residual Current Devices are available for purchase online at www.extrabattery.com.au Ensure the Pump is not being used with particles thicker than 20mm. Contact customer service

PRODUCT DIMENSIONS

EXPLODED VIEW
