SICCE International

Master DW

Top characteristics

实用手柄，方便携带泵。
低水位进水口，直径小于4 mm（0.16''）
防堵系统：“自洁”双转叶轮，可排出大小达8毫米的碎屑。

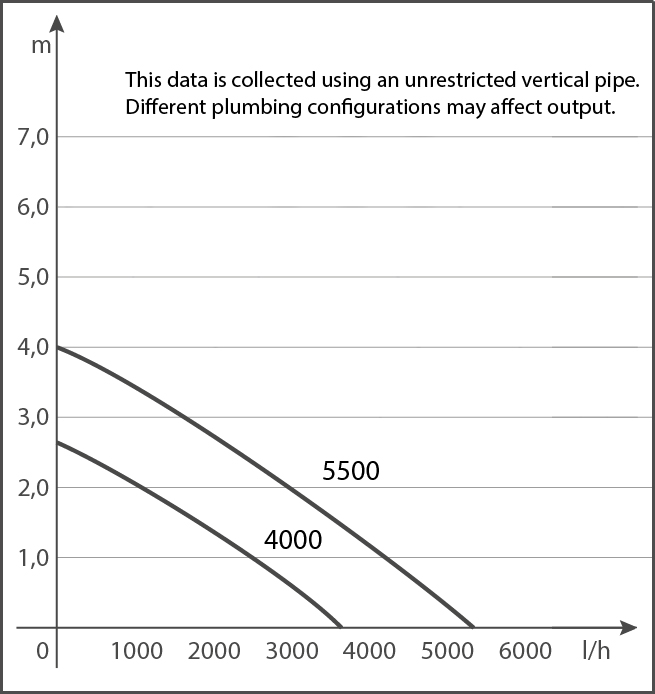

性能图例
PRODUCT DIMENSIONS

EXPLODED VIEW

Master DW

MASTER DW是专为在恶劣水质环境下工作而设计的，适用于中、大型池塘。非常适合创建瀑布或与加压外部池塘过滤器配合使用。不同的是，其他类似设计的泵只能运行很短时间，而MASTER DW被设计为可持续运行。

Key Features

MASTER DW 4000 - 5500 - 8000	MASTER DW 10500e
Double filtration intake	Double filtration intake
Discharge adapter to connect standard garden hoses	Discharge adapter to connect standard garden hoses
Corrosion resistant thermoplastic case, volute and impeller	Corrosion resistant thermoplastic case, volute and impeller
Use in combination with GREEN RESET	Automatic switch OFF in case of dry operations without the need of an external floating switch
	Electronic controlled synchronous motor with unidirectional rotor
	Thermal protection in case of overheating

ISTRUZ

MASTER DW 4000

MASTER DW 4000

€99.94

添加到收藏夹

Q-Max	3700 l/h
H-Max	h 275 cm
Voltage / Hertz	230-240v / 50hz
Watt	50
UMSM01F	cable 10 m - schuko - 3p

MASTER DW 5500

MASTER DW 5500

€149.94

添加到收藏夹

Q-Max	5400 l/h
H-Max	h 400 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR01F	cable 10 m - schuko - 3p

MASTER DW 8000

MASTER DW 8000

€222.17

添加到收藏夹

Q-Max	8000 l/h
H-Max	h 600 cm
Voltage / Hertz	230-240v / 50hz
Watt	135
UMSR02F	cable 10 m - schuko - 3p

MASTER DW 10500e

MASTER DW 10500e

€322.17

添加到收藏夹

Q-Max	10500 l/h
H-Max	h 950 cm
Voltage / Hertz	230-240v / 50hz
Watt	250
UMSR03F	cable 10 m - schuko - 3p

Spare parts 查看全部

SGR0036/OL		MASTER DW 4000	ROTOR	€11.80	数量
SKT0070/OL		MASTER DW 4000	PRECHAMBER	€6.10	数量
SKT0071/OL		MASTER DW 4000	CERAMIC SHAFT +BUSHINGS	€11.60	数量
SPL0035/OL		MASTER DW 4000	BOTTOM GRID	€5.30	数量
SVE0008/OL		MASTER DW 4000	O-RING 3 pcs	€4.00	数量
STR0003/OL		MASTER DW	HOSE CONNECTOR 1" gas	€11.60	数量
90956/OL		MASTER DW 5500	ROTOR	€32.50	数量
90961/OL		MASTER DW 5500	PRACHAMBER	€6.60	数量
90960/OL		MASTER DW 5500/8000	CERAMIC SHAFT +BUSHINGS	€15.60	数量
90963/OL		MASTER DW 5500/8000	Stainless steel screws 4 pcs - 4 units	€2.60	数量
90964/OL		MASTER D 5500/8000	O-RING PRECHAMBER 2 pcs - 2 units	€4.30	数量
90965/OL		MASTER D 5500/8000	BOTTOM GRID	€15.50	数量
90957/OL		MASTER DW 8000	ROTOR	€36.30	数量
90962/OL		MASTER DW 8000	PRECHAMBER	€6.30	数量

FAQ 查看全部

PROBLEM	POSSIBLE CAUSE	SOLUTION
The Pump does not start, or pump water	Pump is not connected to the power supply Water level too low The impellor is stuck The thermal overload protection is activated The motor is damaged	Check that the Pump is connected to the mains power supply Turn Pump off at the mains power supply and inspect and clean obstruction Wait for the motor to cool and it will automatically start operation Contact customer service
The Pump does not sup- ply water when the motor is running	Priming vent blocked The base is obstructed/blocked Air lock in the hose/tube and/or Pump (air bubbles) Discharge hose/tube (not included) is kinked or damaged	Clean the Priming vent Turn Pump off at the mains power supply and clean the base of debris. Perform several start-ups in order to remove all the air or re prime Pump Un-kink the discharge hose/tube. Or replace hose/tube. Turn Pump off at the mains power supply and check the discharge outlet and filter for any foreign bodies.
The Pump flow rate is reduced Check the discharge point height.	The base is partially obstructed/blocked The hose/tube is obstructed. Incorrect assembly leads to air and water leakage in the discharge lines.	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Remove the obstructions Reduce the height of the discharge point. Note: the lower the discharge point, the faster the flow rate Ensure the discharge lines are the correct length and all assembly instructions are adhered to.
Pump will not turn off, even though the water level is low
Hose/tube does not stay on the adaptor when water is travelling through	The hose/tube is slightly wider than the dimen- sion of the adaptor	Use a hose clamp to secure the drain hose to the fitting. Fit correct size pipe and use a hose clamp
The Pump operates intermittently	The base is obstructed/blocked Incorrect voltage is being used The fluid contains particles thicker than 20mm The motor is faulty or damaged	Turn Pump off at the mains power supply and clean the base of any foreign matter and debris Ensure the Pump is connected into 230-240V power supply Note: This submersible Pump must be used with a residual current device with a rated residual current of 30mA or less. (This device is not supplied and can generally be purchased from your local Hardware store) Residual Current Devices are available for purchase online at www.extrabattery.com.au Ensure the Pump is not being used with particles thicker than 20mm. Contact customer service
